The new Orbi-Shaker CO2 series is designed for shaking, mixing& aeration applications in extreme environments, including CO2 incubators. It can withstand temperatures from 0 to 60°C and humidity levels up to 100%.
To avoid contamination, unintentional release of gas or deviations from protocol, all settings are adjusted via the included remote control module. This module can be stored outside of the chamber and connects to the shaker via a flat (1mm thickness) cable, that easily passes through a port or underneath an incubator door without compromising the seal. This allows for user adjustment of run time or mixing speed without opening the chamber door(s).
The instrument is supplied with a non-slip rubber mat platform. In addition, convenient MAGic Clamp™ platforms (of multiple sizes) are also available for use with Erlenmeyer flasks and test tube racks. The unique magnetic attachment method (PATENTED) has been widely recognized as the easiest way to instantly change between flask clamps of different sizes.
Item: | Description: | |
---|---|---|

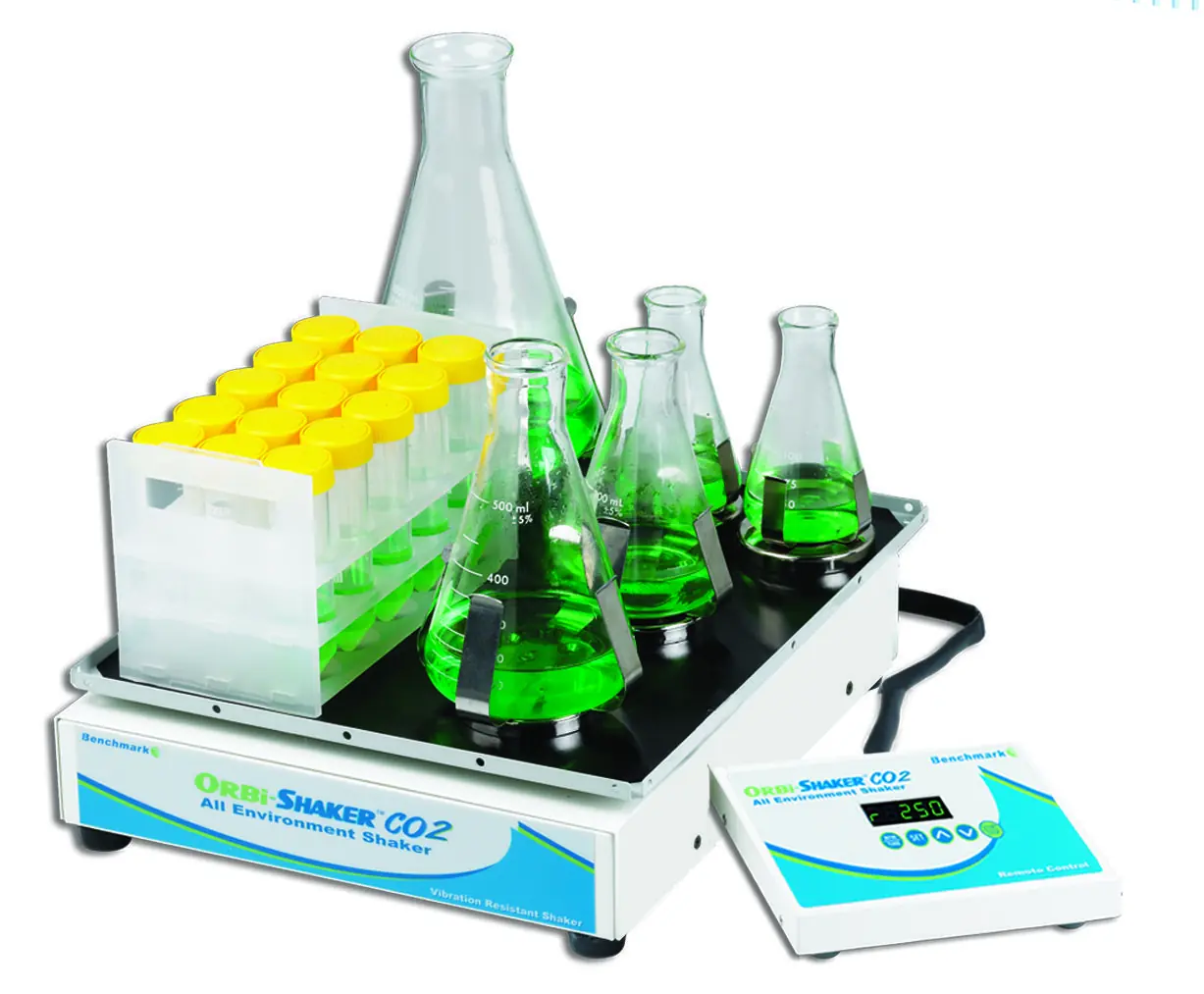

BT4000* | OrbiShaker CO2 with flat mat platform (13×13″) | |

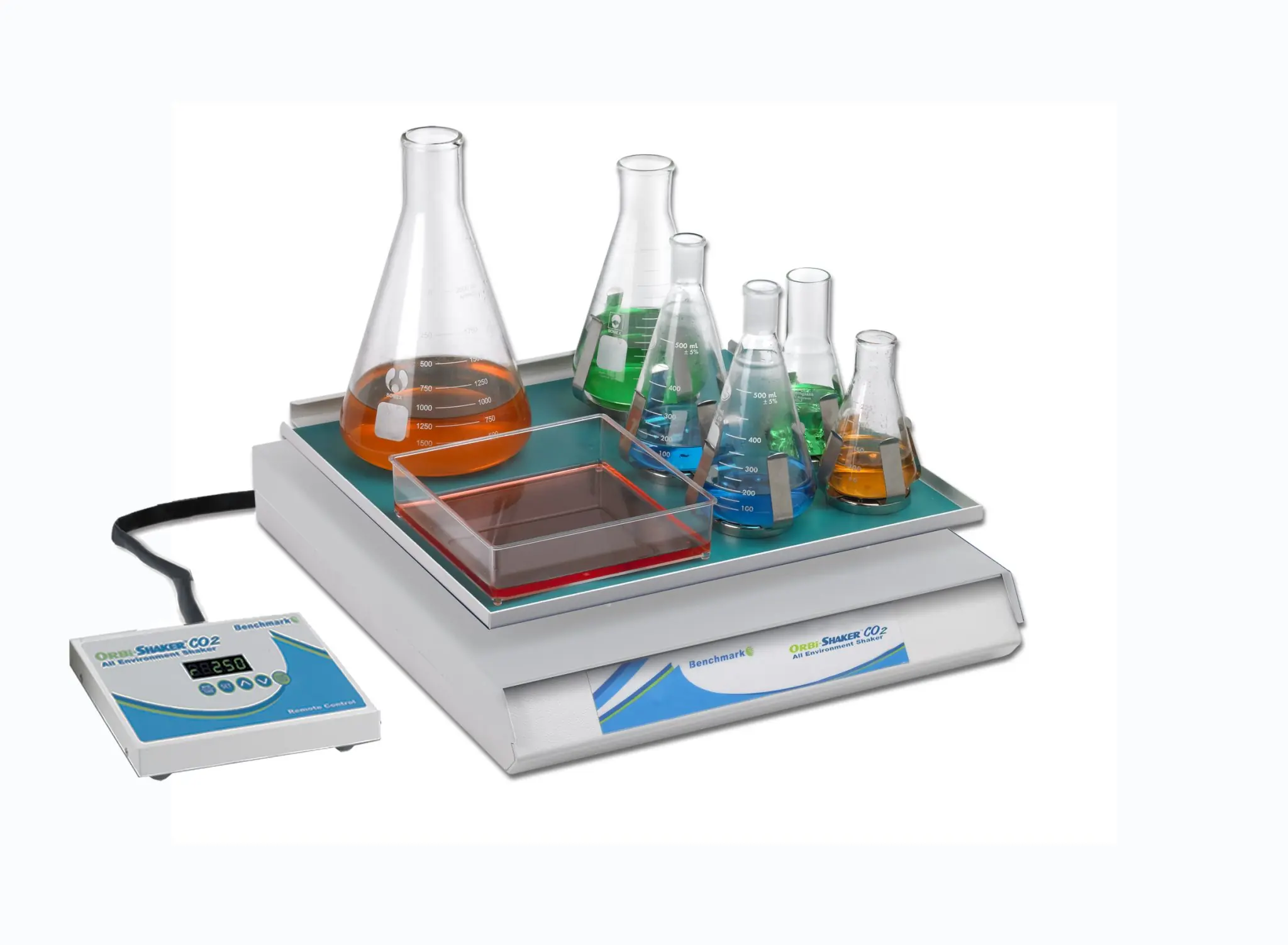

BT4010* | OrbiShaker CO2 XL with flat mat platform (16×16.5″) | |
Optional Platforms (Magic Clamp Universal) | ||
BT3000-MR | MAGic Clamp™ universal platform (for BT4000) for flasks and tube racks (14 x 12 in) | |
BT4010-MR | MAGic Clamp™ universal platform (for XL model) for flasks and tube racks (16 x 16.5 in) | |
H1010-MR | MAGic Clamp™ universal platform (for XL model) for flasks and tube racks (18 x 18 in) | |
* Includes US Plug. For EU Plug, please add(-E). | ||
Optional Platforms (misc.) | ||
H1000-P-MP | Dedicated platform for 4 microplates | |
H1000-P-MP | Dedicated platform, 12 x 125ml | |
H1000-P-250 | Dedicated platform, 8 x 250ml | |
H1000-P-500 | Dedicated platform, 5 x 500ml | |
H1000-P-SP | Universal Spring loaded platform, (for irregular vessels) | |
MAGic Clamp Flask Clamps | ||
H1000-MR-CMB BEST SELLER! | ADJUSTABLE flask clamp, accepts 125ml, 250ml & 500ml (max. 9×500, 14×250 or 24x125ml) | |
H1000-MR-50 | Flask clamp for H1000-MR, 50ml, max.30 | |
H1000-MR-125 | Flask clamp for H1000-MR, 125ml, max.24 | |
H1000-MR-250 | Flask clamp for H1000-MR, 250ml, max. 14 | |
H1000-MR-500 | Flask clamp for H1000-MR, 500ml, max. 9 | |
H1000-MR-1000 | Flask clamp for H1000-MR, 1L, max. 5 | |
H1000-MR-2000 | Flask clamp for H1000-MR, 2L, max. 2 | |
H1000-MR-MP | Clamp for H1000-MR, 1xmicroplate, max. 6 | |
MAGic Clamp Tube Racks | ||
H1000-MR-1550 | Tube Rack for H1000-MR, 30x15ml & 20x50ml, max. 2 | |
H1000-MR-T15 | Tube Rack for H1000-MR, 32x15ml, max. 3 | |
H1000-MR-T50 | Tube Rack for H1000-MR, 15x50ml, max. 3 | |
H1000-MR-T50 | Tube Rack for H1000-MR, 15x50ml, max. 3 | |
H1000-MR-T600 | Bottle Rack for H1000-MR, 4x500ml, max.1 | |
H1000-MR-T15H | Bottle Tube for H1000-MR, 12×1.5/2.0ml, horizontal | |
H1000-MR-T150H | Bottle Tube for H1000-MR, 4x15ml, horizontal | |
H1000-MR-T500H | Bottle Tube for H1000-MR, 2x50ml, horizontal | |
H1000-MR-TSR | Tilted holder for 15ml and 50ml tube racks, max 3 |
[accordions]
[accordion title=”key features”]
· Designed to fit and maximize capacity in most C02 incubators
·Remote controlled, adjust settings without disrupting the CO2 environment
·Horizontally circular 19mm orbit for aeration & mixing
· Instantly exchange flask clamps with MAGic Clamp™ accessories (PATENTED
[/accordion]
[accordion title=”Product Brochure”] Product brochure [/accordion]
[/accordions]
