Microfluidic sensor reader

An acquisition interface for all your sensors inside your setup The Sensor Reader is an interface allowing the acquisition of many kinds of analog and digital sensors, including Elveflow’s pressure sensors and flow sensors. The Sensor Reader can be used to monitor flow rate, pressure, or other physical parameters on any type of flow control instrument (syringe pump, peristaltic pump, perfusion, pressure controller).

FAST & PRECISE

⇒Down to 1 ms response time and 11 bit signal resolution

SIMULTANEOUS READING OF 4 SENSORS

⇒Connect up to 4 sensors

COMPATIBLE

⇒ELVEFLOW’s pressure & flow sensors

√ MONITOR UP TO 4 SENSORS

√ REAL-TIME CONTROL & FEEDBACK

Unique Performances

• Fast acquistion frequency 1 kHz

• From 9 to 16 bits resolution

• Real-time control & feedback loops

• Read simultaneously up to 4 sensors

Highlights

MONITOR THE MEASUREMENT OF ALL YOUR MICROFLUIDIC SENSORS

You can connect the sensors (pressure, flow rate…) wherever you want in the setup in order to monitor your microfluidic experiment. The Sensor Reader module allows you to control 4 sensors simultaneously via our software. If needed, the software allows to control several Sensor Readers. It is an ideal supplement of the OB1 flow controller if you need to control all your experimental parameters.

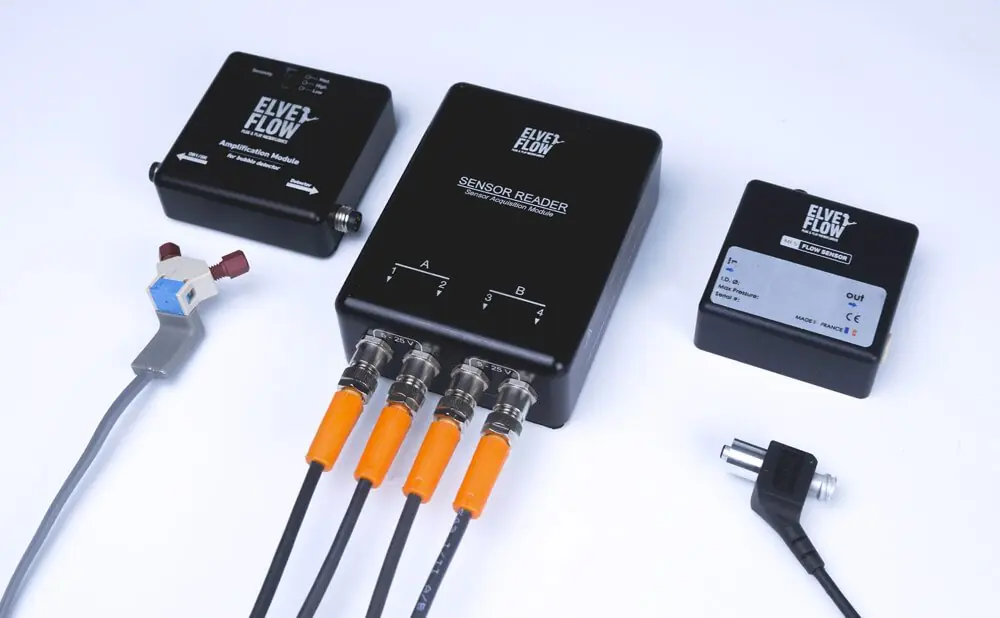

Sensor reader sketch how to use with flow sensor and pressure sensor

Benefit in an optimal manner from the performance of Elveflow® Sensors with the Sensor Reader acquisition interface. The open interface Sensor Reader also allows you to use third-party sensors.

Fast and precise

With an acquisition sampling rate of up to 100 Hz and an 11 bit resolution, the Sensor Reader allows you to easily conduct experiments involving monitoring or controlling a physical parameter with analog and digital sensors in real time.

Wide sensors compatibility

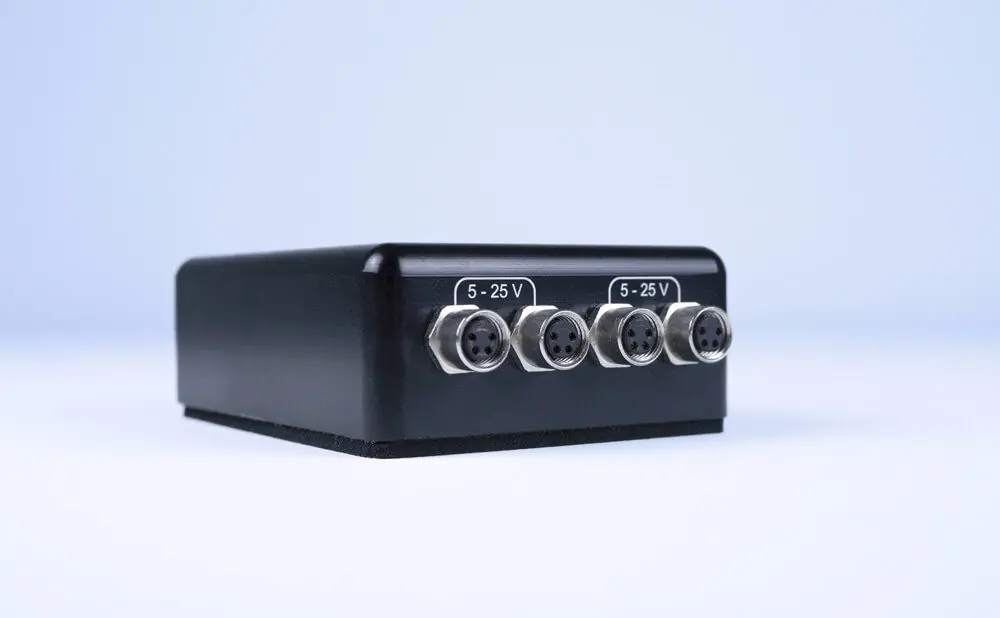

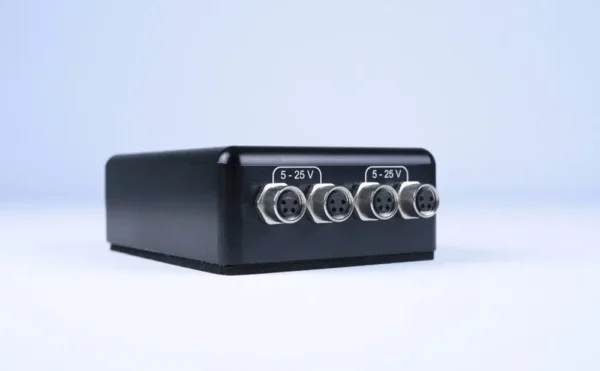

Sensor Reader integrate two independent power supplies ranging from 5 to 25 V (one for the channels 1-2, one for the channels 3-4). This allows to use of a wide variety of sensors functioning with different voltages for their power supply. Thus, up to 4 sensors working with 2 different power supply voltages can be monitored simultaneously.

Noise Reduction

An embedded analog 60 Hz low pass filter function can be activated on each channel independently to reduce sensor noise.

Performance

Our Sensor Reader achieves an 11 bits resolution at up to 1 kHz sampling rate and a sub-resolution noise, for accuracy levels on your sensor measurements down to 0.05% of the full scale and a response time down to 1 ms.

Sampling rate up to 1 kHz
Resolution : 11 bits
3 ranges : 0-1 V, 0-5 V, 0-10V
Fully compatible with other Elveflow instruments
Measurement noise below resolution
Noise reduction function with a 3rd order 60 Hz low-pass filter

Applications

• The Sensor reader can be used to monitor flow rate, pressure or other physical parameters on any type of flow control instrument (syringe pump, peristaltic pump, perfusion, pressure controller)

• It embeds two independent power supplies which allows the use of a wide variety of sensors simultaneously, functioning with different voltages for their power supplies.

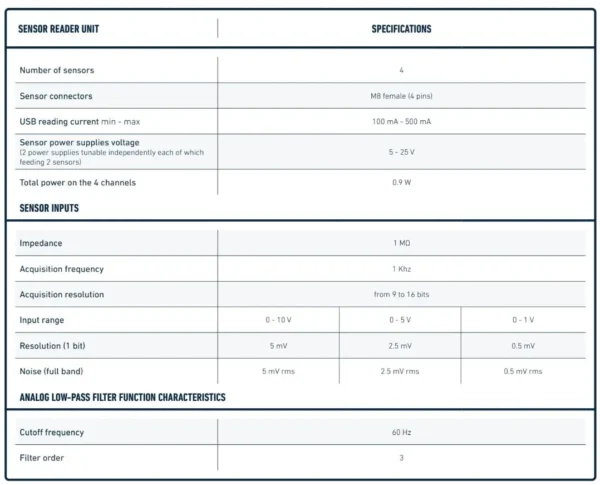

Technical Specifications

SOFTWARE

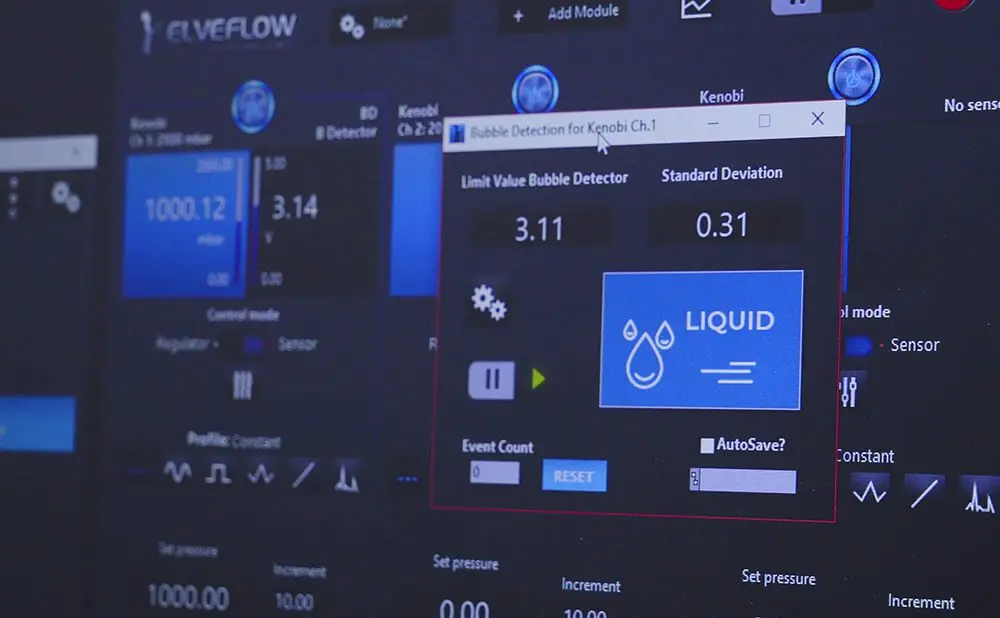

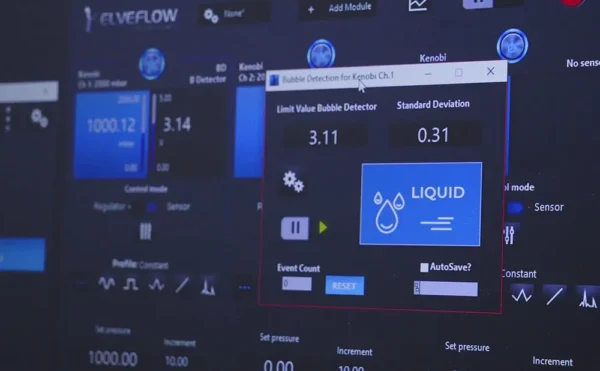

ESI is Elveflow’s more advanced software interface, built to make experimenter’s life better. It is perfectly adapted, from simple setups control to very advanced setups and workflows automation. It embarks several modules that make time-consuming and painful tasks so simple. It comes with SDK libraries to control the Elveflow system with your own code (C++, Python, MATLAB®, LabVIEW®)
